Elbro AG

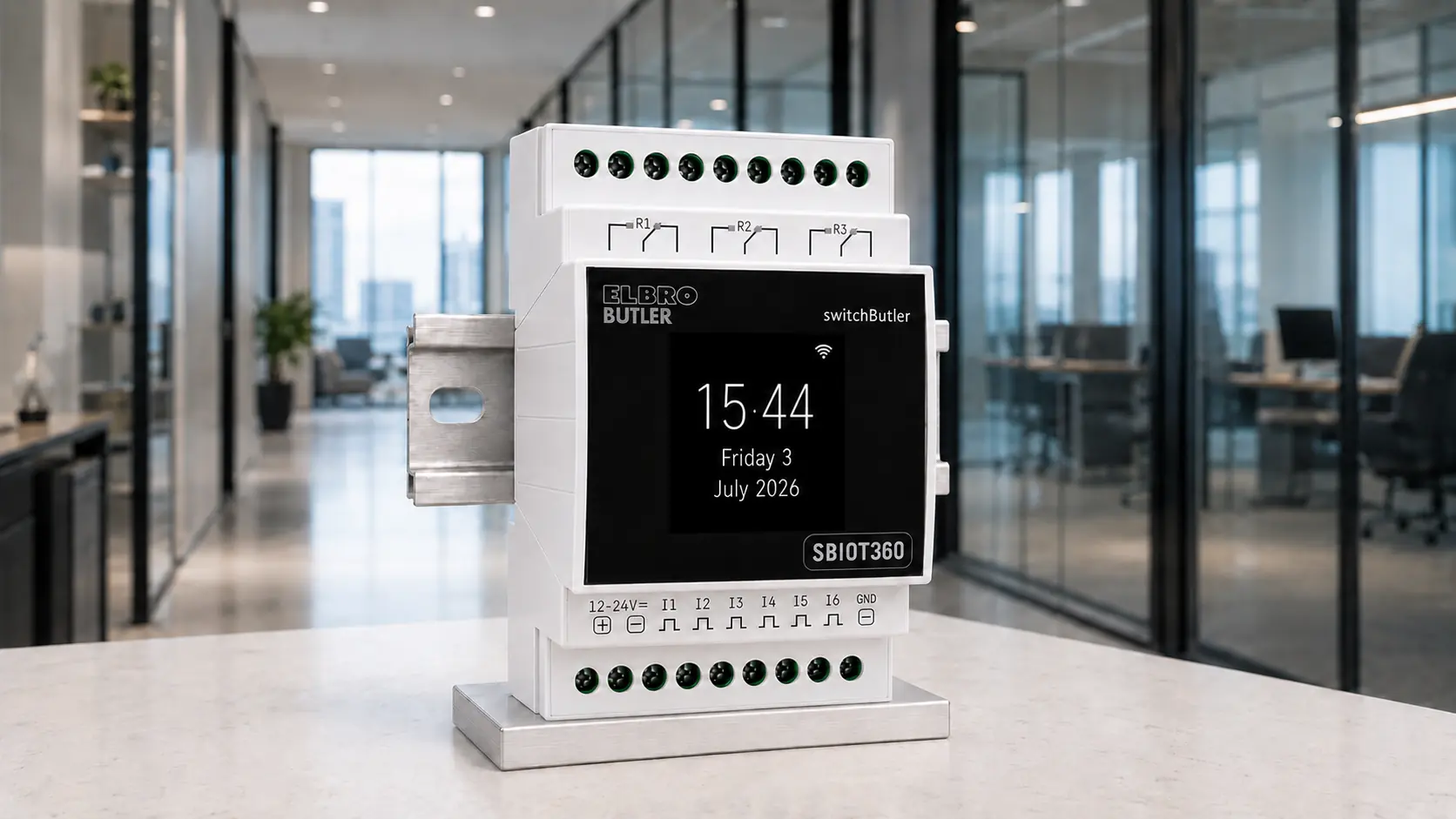

SBIOT360AI-generated illustrative image; some details may differ from reality.IoT · Wi-Fi 2.4 GHz
switchButler IoTSwiss Made

SBIOT360

DIN-rail Wi-Fi controller with display for remote operation and monitoring of existing installations.

Key features

Wi-Fi 2.4 GHz1.44" display3 relays6 inputsDIN rail
ELDAS® No.
539 111 260
EAN
7611664204418

Technical data

Electrical characteristics & interfaces
Nominal supply voltage
12–24 V DC
Extended supply-voltage range
9–30 V DC
Standby current at 12 V DC
≤100 mA (≤1.2 W)
Maximum current draw at 12 V DC, depending on hardware revision
300–500 mA (3.6–6 W)
Relay outputs
3 potential-free changeover contacts (SPDT; COM / NO / NC)
Contact rating per relay
5 A at 30 V DC · 10 A at 250 V AC
Total switched current
≤10 A across all three relays
Digital inputs
6
Maximum voltage applied to digital inputs
30 V DC
Digital input modes
Dry contact to GND (sink) or DC voltage signal (source)
Analogue inputs
None
Installation & environment
Connectivity
Wi-Fi 2.4 GHz + Bluetooth LE
Display
1.44-inch TFT touchscreen
Mounting
35 mm DIN rail compliant with EN 60715
Width
3 DIN modules
Dimensions (W × H × D)
53.5 × 90.7 × 62 mm
Maximum overall height
96.2 mm
Weight
152 g
Enclosure material
Self-extinguishing PC/ABS, UL 94 V-0
DIN-rail hook
PPO
Enclosure colour
Grey RAL 7035
Protection rating
IP20 (EN 60529)
Operating temperature
−5 … +45 °C
Storage and transport temperature
−10 … +50 °C
Terminals
Screw terminals · conductors up to 2.5 mm²
Optional sensor
BTH1 (temperature and relative humidity) · maximum 3
Compliance & standards

Marking
CE
Radio equipment (RED)
Directive 2014/53/EU
Health & electrical safety
RED 2014/53/EU · Art. 3(1)(a)
Electromagnetic compatibility (EMC)
RED 2014/53/EU · Art. 3(1)(b)
Hazardous substances (RoHS 3)
Directive (EU) 2015/863
Electronic waste (WEEE)
Directive 2012/19/EU
Chemicals (REACH)
Regulation (EC) 1907/2006
Radio cybersecurity (RED DA)
Reg. (EU) 2022/30 · EN 18031:2024

This section summarises the applicable regulatory framework. The EU Declaration of Conformity, product label and technical documentation for the published hardware revision take precedence.

Sensors & accessories

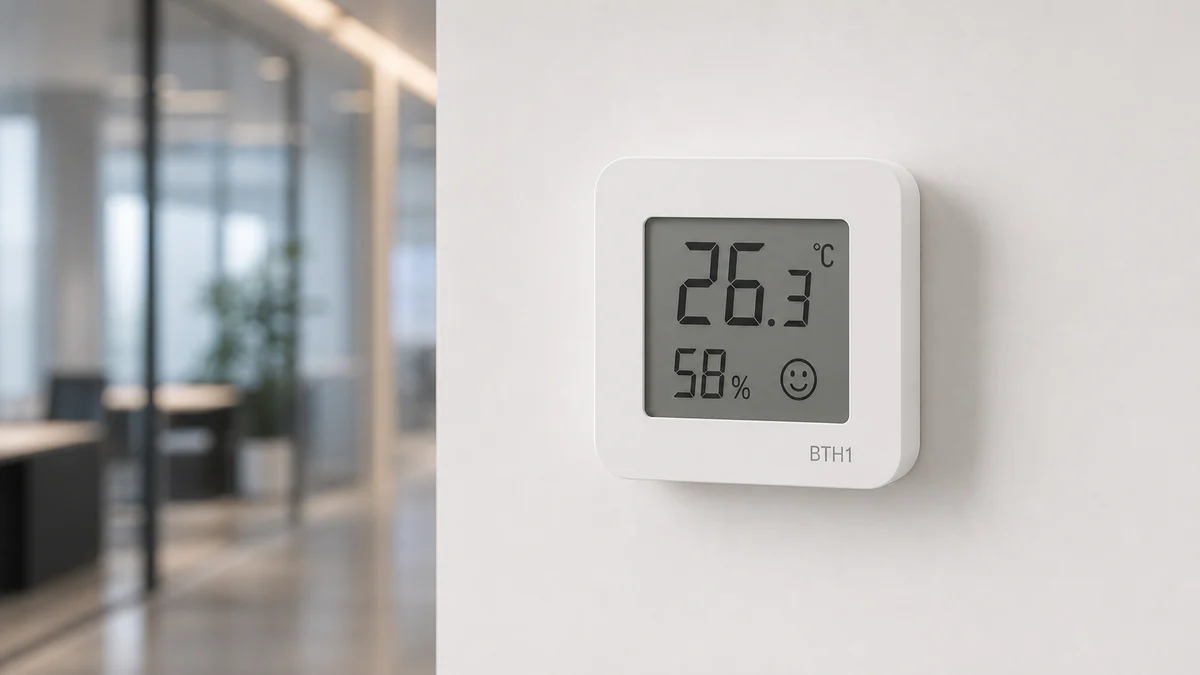

BTH1AI-generated illustrative image; some details may differ from reality.
BTH1

Wireless temperature and humidity sensor. Pairs over Bluetooth LE through the app; can trigger alarms and automatic switching when a threshold is crossed.

ELDAS® No.
536100500
EAN
7611664189654

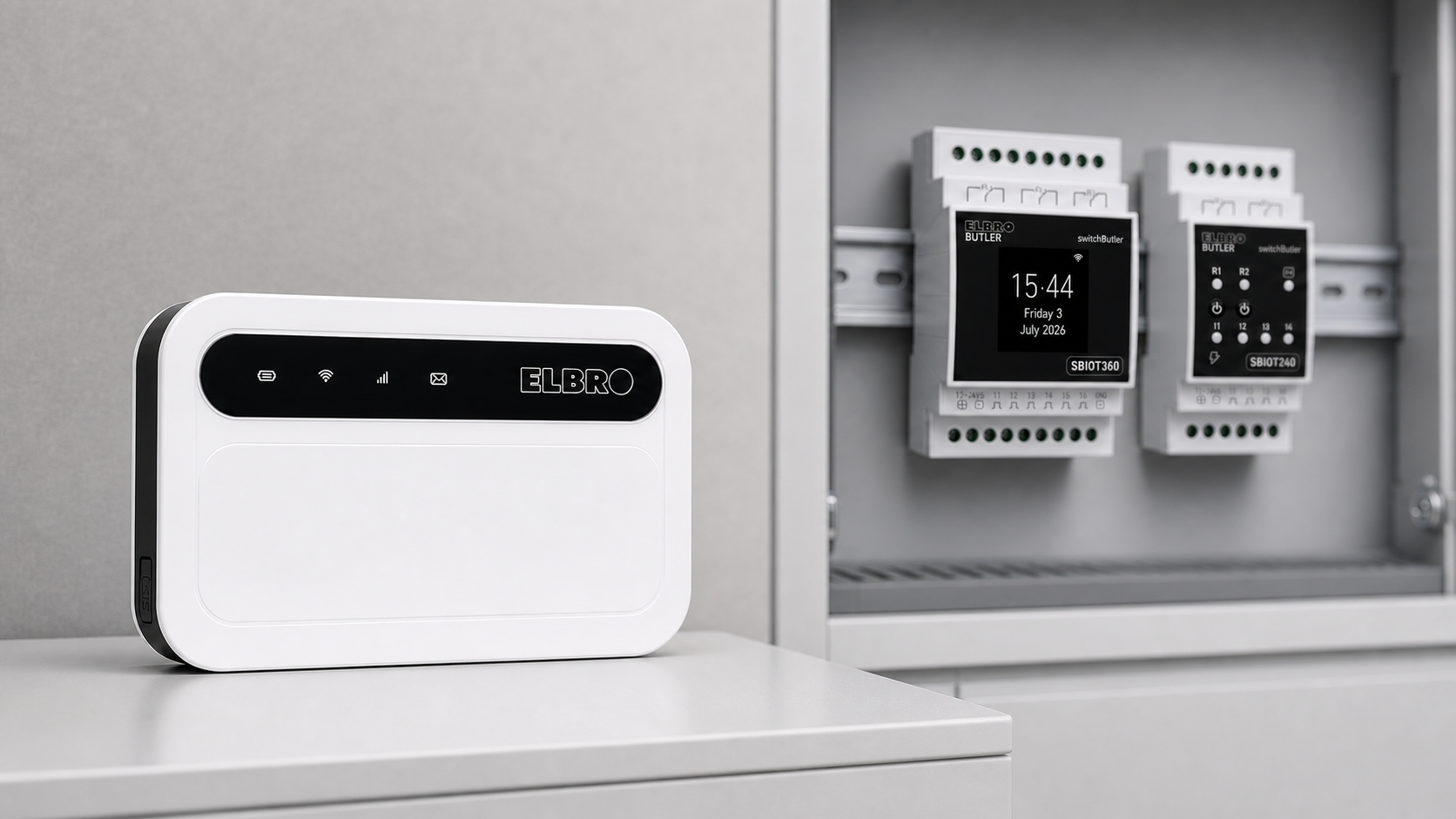

ELBRO 4G+ LTE Mobile Hotspot in perspective viewAI-generated illustrative image; some details may differ from reality.
4G+ LTE Mobile Hotspot

Mobile hotspot with 4G+ LTE and Wi-Fi 6 for connecting up to 14 devices. It has a 3000 mAh battery, USB-C power and a CRC9 connector for an external antenna. The USB-C power adapter is not included, in accordance with applicable European regulations.

ELDAS® No.
967 001 009
EAN
7611664204234

Documentation

Technical documentation

Separate installation and commissioning instructions for the selected product.

Installation manualCommissioning manualDownload the DE/FR/IT quick referenceApps

Technical data may vary by hardware revision. For installation and conformity, refer to the product label, installation manual and the associated EU Declaration of Conformity.
